    • Introduction

    Introduction

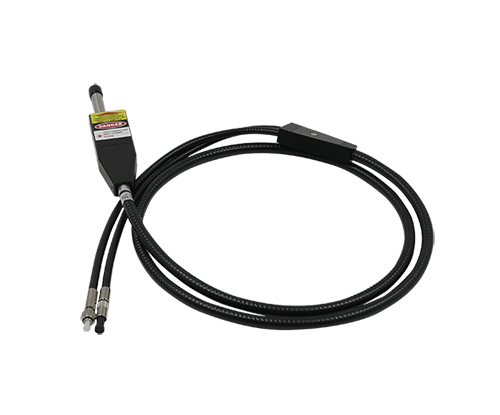

    Coaxial optical path design, coupling efficiency > 80%, tail fiber withstand 50N tension, FC/SMA905 standard interface, good plug and pull consistency, Raman spectroscopy, experimental teaching.

    Feature

    ◆ Spectrum range:150cm-1-4000cm-1;

    ◆ Cut-off depth>OD8;

    ◆ Initial beam consistency:start<150cm-1.

    Description

    Specification
    Item Value
    Product parameter RPB-785-1.5-FS
    Dimension Main body:102×30×13 mm / Probe:45 Stainless steel
    Outgoing fiber 105μm core diameter,VIS-NIR waveband
    Receiving fiber 200μm core diameter,VIS-NIR waveband
    The armor size of the combined part Φ8.5mm,Outer black PVC
    Wire harness N.A.
    Trigger device N.A.
    The light path control N.A.
    Connect laser terminal FC/PC
    Connect spectrometer terminal SMA905
    Laser wavelength 785nm
    The tension 8.5mm sheath can withstand 50N
    Filter laser cutoff depth OD8
    Spectrum range 150cm-1~4000cm-1
    Probe working distance 7.5 mm
    Probe shot coupling efficiency ≥80%
    Humidity 5%~80%
