    Colorimetric dish holder on three sides

    Model :CUV-10-3WAY

    Keyword :Cuvette holder Absorbance/Transmittance/Absorption

    Technical Support:

    400-820-7939

    Technical Support:

    021-50687686

    • Introduction
    • Related

    Introduction

    CUV - 10-3 way than color dish holder is equipped with three quartz collimating lens focal length of 10 mm, with spectrometer and light source, the CUV - 10-3 way to measure the absorbance and fluorescence scattering spectrum measurement.

    Cuv-10-3way can configure filters with different wavelength range to complete fluorescence test according to customer requirements. Required filter size: 8mm in diameter and no more than 2.5mm in thickness.

    Feature

    ◆ Three f/2 quartz collimating lenses, UV up to 180nm;

    ◆ Matching color plate with 10mm optical path;

    ◆ The wavelength range can be measured as 200nm-2 m;

    ◆ Insert filter design, wavelength selection is more convenient;

    ◆ The cap design can effectively avoid the influence of ambient light on the detection.

    Description

    Specification
    Item Value
    Optical path 10mm
    Collimating lens configuration Three COL-UV-10(200 nm-2µm)
    Optical fiber interface SMA 905
    Colorimetric dish size 12.5x12.5x45mm
    Fiber optics are recommended 600µm optical fiber
    Beam diameter 5mm
    Optical filter Customizable

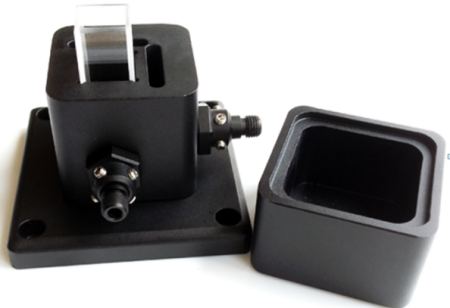

    Product appearance
